LARGE FLAT AND OPEN DESIGN DIGITAL CUTTING MACHINE

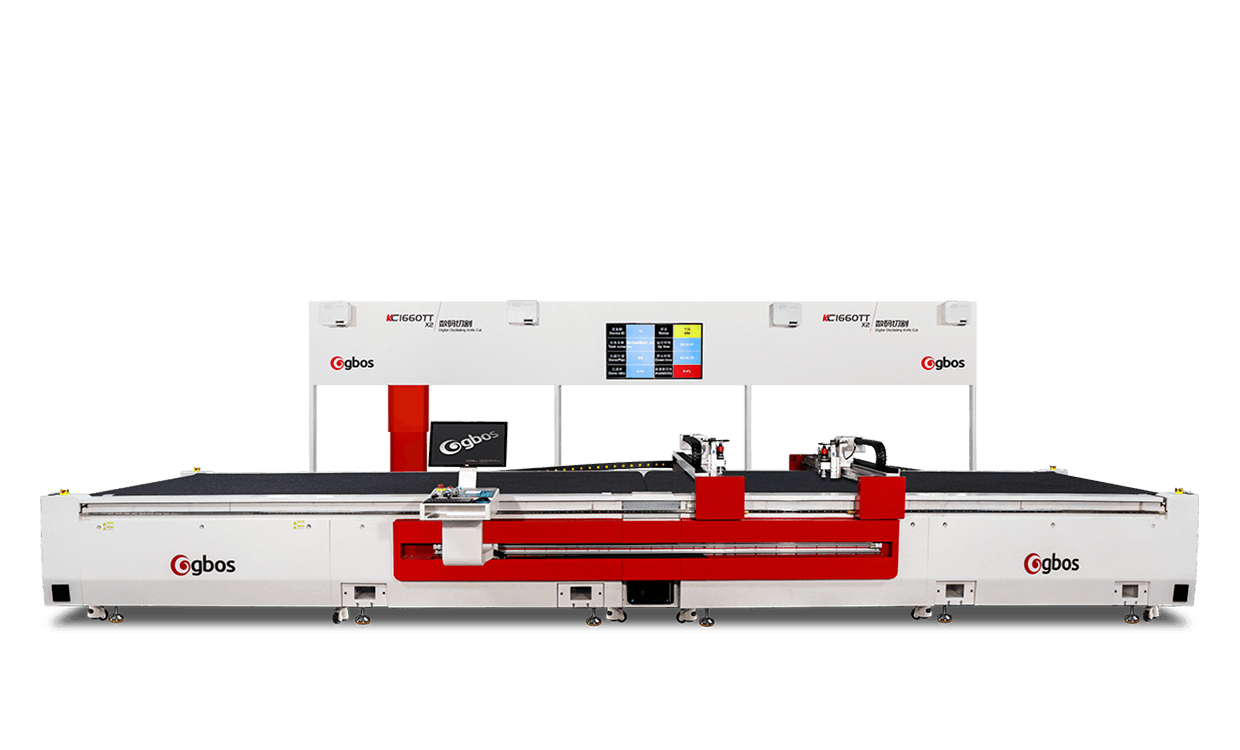

Model: KC1660TT×2
Supporting the cutting of large-format leather, it can meet the needs of different industries for large-size leather materials. It is suitable for industries such as shoes, bags, car seats, sofas, etc.
By utilizing digital cutting technology, manual templates are no longer necessary, enabling efficient and rapid cutting and production processes that enhance productivity and profitability.
Specification Parameter
- MODEL
- Function
- Processing Area(mm)
- Max cutting speed
- Acceleration
- Gross Power
- Weight
- Measurement (L×W×H)
- System/ compatible Format
- KC1660TT×2
- Dual worktables for continuously cutting without stopping for material loading
- 1600MM*3000MM×2
- 800MM/S
- 5000MM/S
- 23400W
- 2900KG
- 2680×8855×1240MM
- Win7/Win10 AI、PLT、DXF、DST、DSB
-

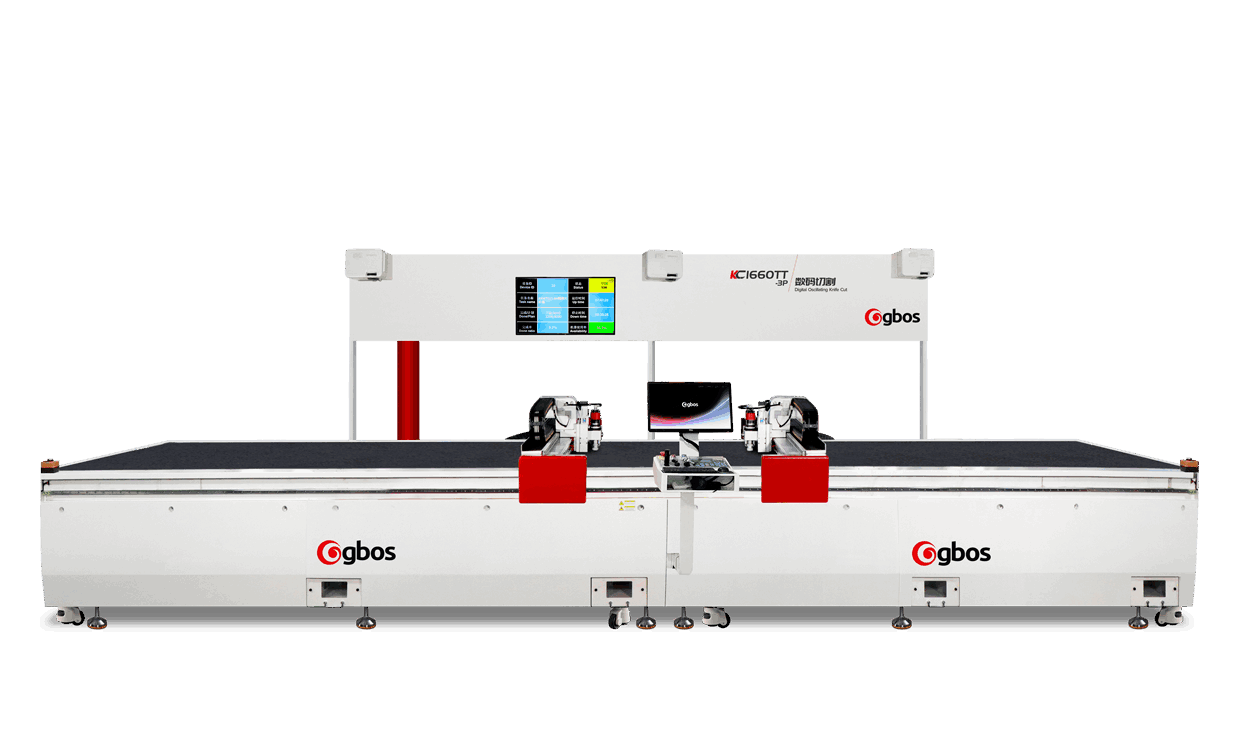

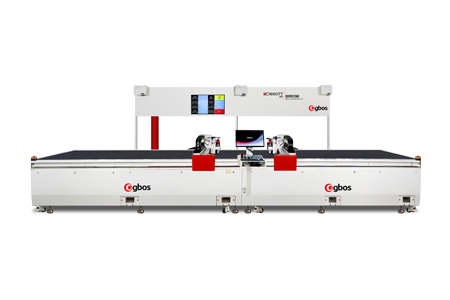

- KC1660TT-3P
- Dual worktables for continuously cutting without stopping for material loading
- 1600MM*6000MM×2
- 1000MM/S
- 5000MM/S
- 32000W
- 3900KG
- 3115×7005×2565MM
- Win7/Win10 AI、PLT、DXF、DST、DSB
-
Perfection in all details
Dual-head asynchronous cutting
An integrated knife holder design, equipped with dual punches or optionally 4 punches, efficiently completing precise material cutting.
4 projection positioning systems
Clearly project the nesting effect onto the material, allowing real-time viewing of the nesting effect and cutting status.
Integrated casting frame
Casting and natural weathering 24 months in advance, stable structure, high corrosion resistance, high precision cutting, lifespan of 20 years.
Extra large working area
Optional working area of "(1600mm*3000mm)*2" or "(3000mm3200mm)*2".
Sliding console
In different operating areas, the console can be slid freely to facilitate checking the operational status of various regions.
IoT dashboard
Real-time data display, remote monitoring, data analysis and reporting, equipment management, visual operation interface.
Partitioned vacuum system
Through zoned suction, it ensures the flatness of the material and reduces the likelihood of misalignment.
Modules & Tools
Material Application
Professional Digital Cutting Solutions
Smart Layout Planning | Sample Testing | ROI Analysis | Technical Support | Training | Custom Solutions | Parts
