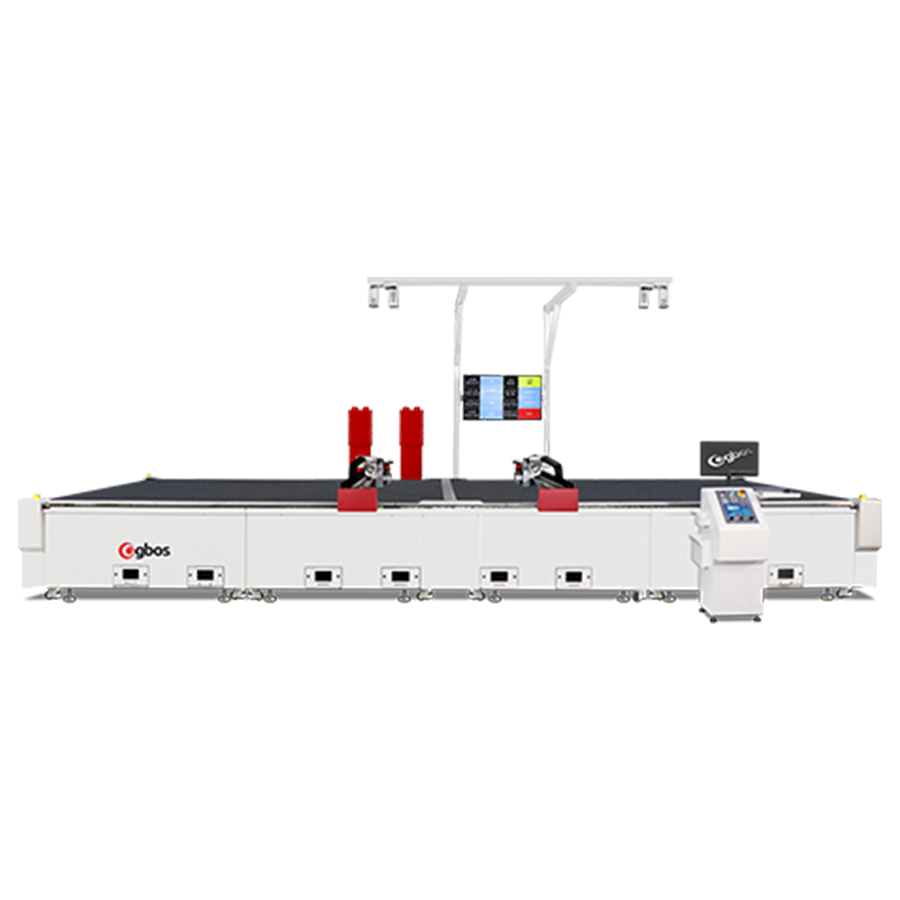

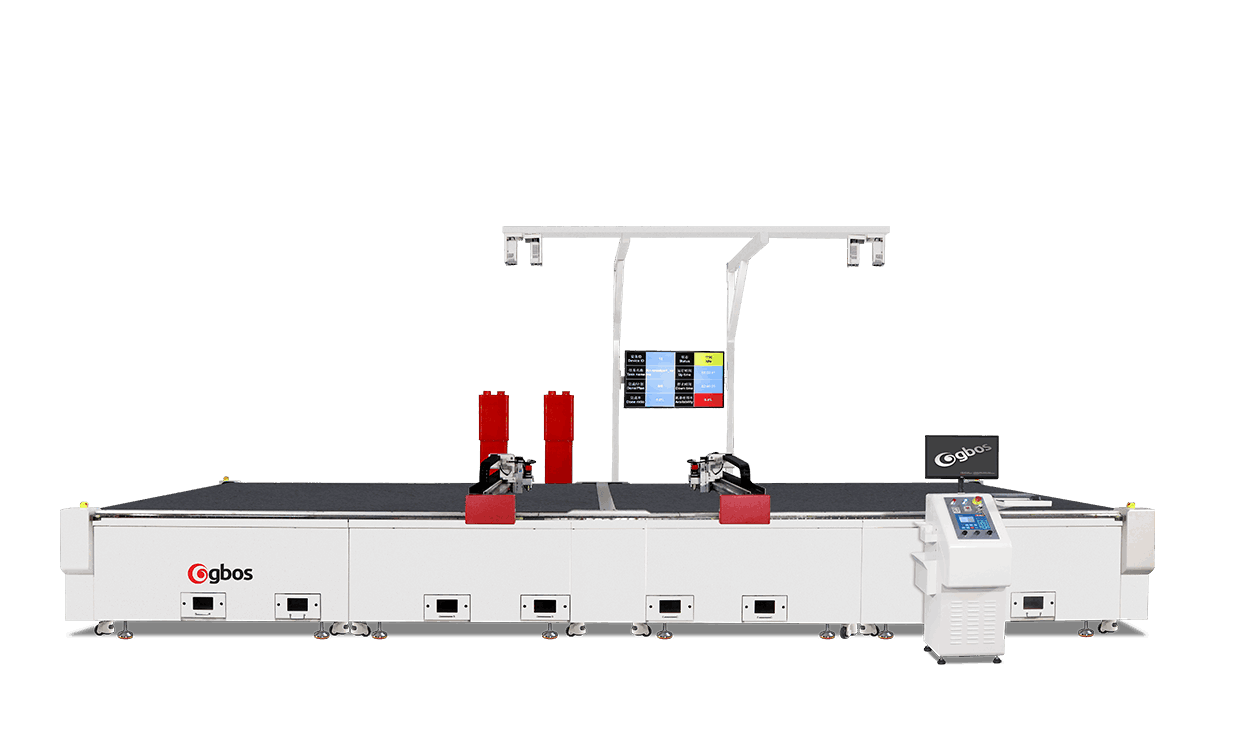

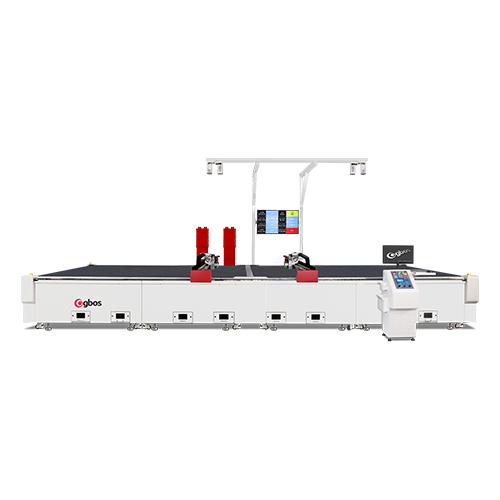

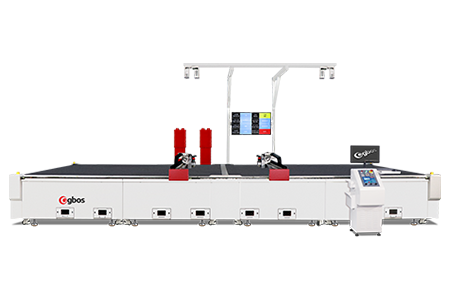

LARGE FORMAT LEATHER CUTTING MACHINE
Model: KC3060TT ×2
Integration of Material Collection and Cutting.
Ultra-Large Format, No Overcut, High Efficiency.
Specification Parameter
- Description
- MODEL
- Processing Area(mm)
- Max cutting speed
- Acceleration
- Gross Power
- Weight
- Absorbing power
- Measurement (L×W×H)
- System/ compatible Format
- KC3060TT×2
- Equipped with 4 Projection Preview Positioning Systems
- 3200*3000mm x2
- 800mm/s
- 20mm/s
- 53kw
- 4142kg
- 6000rpm/min
- 5425*7854*3588mm
- Windows 10/11 Al,PLT,DXF , DST,DSB
-
Dual-head async cutting system
Double-head async linear guide, rack and pinion driver. High precision and high efficiency at the same time.
Cutting and punching
The cutting and punching base are integrally formed, improving processing accuracy
One-piece frame
Integrated frame structure, more stable than splicing structure
4 projection preview positioning
Projection simulates layout effects, real-time preview, convenient and quick
Partition vacuum adsorption system
12 vacuum adsorption areas effectively ensure material flatness and improve cutting accuracy
OEE Dashboard
Real-time monitoring of equipment operating status and production capacity
IoT Bridge
Break the isolated data to achieve digital management workshop.
Modules & Tools
Material Application
Comprehensive Customer Support
Service contract; Remote service; Customer service center; Training; Hardware upgrade; Component stock; Special task support; Upgrade/moving/renew; Service at production facility; Sample innovation & development;
